Semi Rigid Suspended Crawler Bulldozer , Power Shift Road Construction Mining Dozer

Name: Semi Rigid Suspended Crawler Bulldozer Power Shift Road Construction Mining Dozer
Brand: Visbull
Price: 1 USD

Buy cheap Semi Rigid Suspended Crawler Bulldozer , Power Shift Road Construction Mining Dozer product

Brand Name : Visbull

Model Number : TYS165-2

Certification : Ghost/ISO

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : L/C at sight, T/T or western Union

Supply Ability : 500 units per month

Delivery Time : 30 working days after received L/C or your deposit

Packaging Details : Naked packing

Product Name : Crawler bulldozer

Ground clearance : 382.5mm

Engine flywheel power : 165HP

Max. Torque : 790 N.m

Operating weight(not including ripper) : 18300KGS

Max.digging depth : 550 mm

Ground pressure : 28.3 Kpa

Track gauge : 2300 mm

Contact Now

Semi Rigid Suspended Crawler Bulldozer , Power Shift Road Construction Mining Dozer

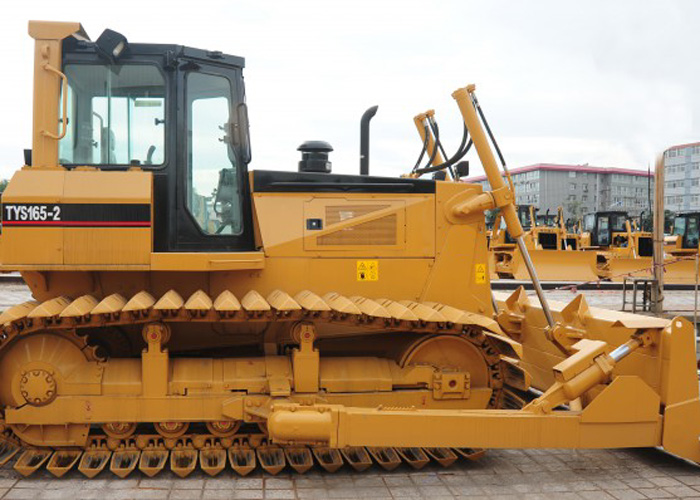

Crawler Bulldozer TYS165-2 165HP Power for Construction Site and Mining, 18300 KG Operating Weight

Feature:

TY165-2 bulldozer is semi-rigid suspended, power shift, hydraulically controlled and track-type. It is applicable for road construction, water and electricity engineering farmland leveling, port building, mining and other engineering conditions.

Product Description

TYS165-2 Bulldozer	Unit	165HP
Model		TYS165-2
LWH(Ripper not included)	mm	5585×4222×3190
Operating weight(Ripper not included)	Kgs	18300
Engine Model motor		WD10G178E25
Rated Power	kw/rpm	131/1850
Gradeability(Longitudinal/Transverse)	°	30/25
Blade type		Straight tilt blade
Blade width	mm	4222
Dozing capacity	m3	4.5
Max. drop below ground of blade	mm	400
Max. lift height of blade	mm	957
Ripper type		Three shanks ripper
Max. digging depth of Ripper	mm	550
Max. lifting height of ripper	mm	510
Min. ground clearance	mm	382.5
Number of carrier roller(each side)		2
Number of track roller(each side)		6
Number of track shoe(each side)		42
Width of track shoe	mm	1000
Track gauge	mm	2300
Ground lenth/Ground pressure	mm/Mpa	2920/0.0283
Pitch of track	mm	203

Speed Parameter:

Forward speed

Km/h

1st

0-3.32

2nd

0-6.26

3rd

0-11.40

Reverse speed

Km/h

1st

0-4.0

2nd

0-7.57

3rd

0-13.87
